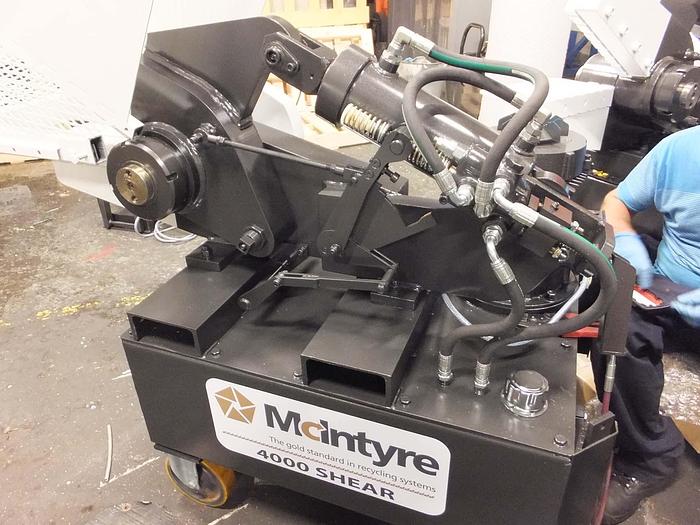

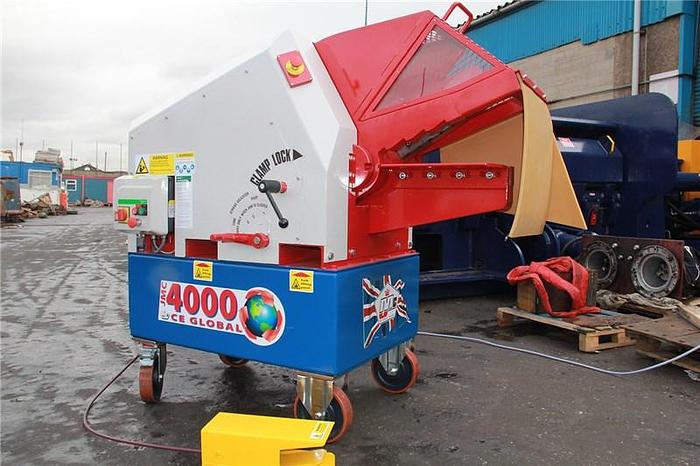

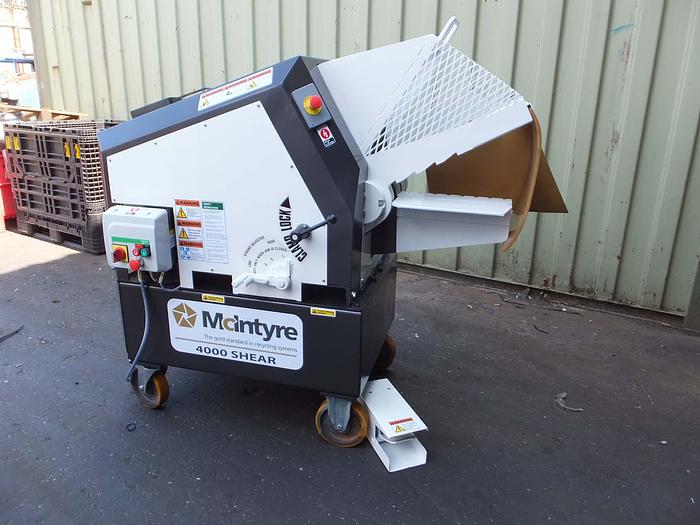

4000 MCINTYRE GLOBAL SAFETY ALLIGATOR SHEAR

The McIntyre 4000 Alligator Shear is more than just a scrap yard shear, the 4000 is the preferred choice of UK Local Authorities for general cutting applications and the Police Force for Weapons Destruction. All moving parts are totally enclosed to improve operator safety, whilst still maintaining the high performance expected from Vortex equipment.

STRONGLY GUARDED

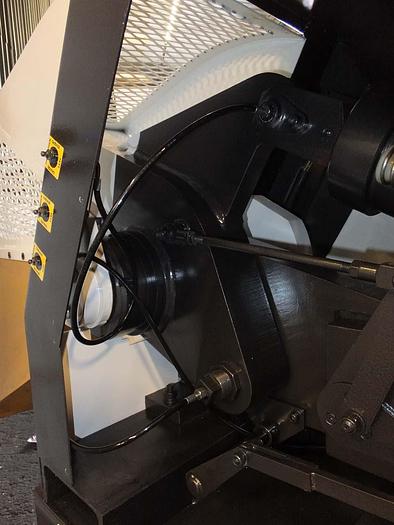

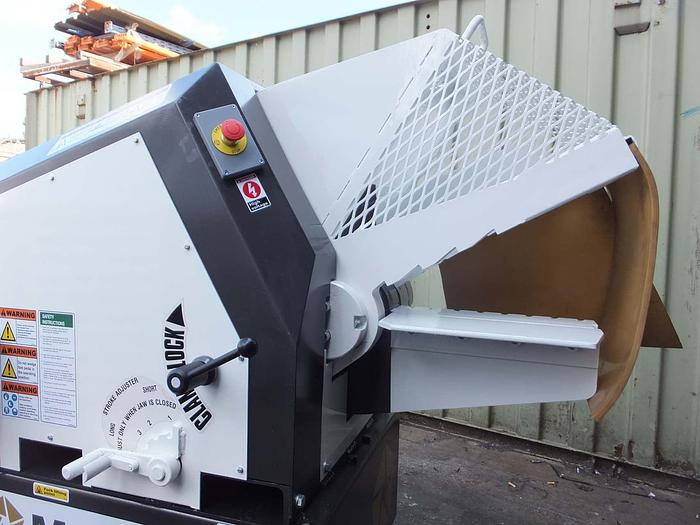

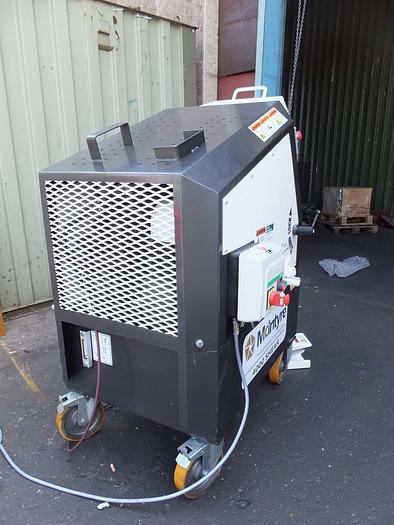

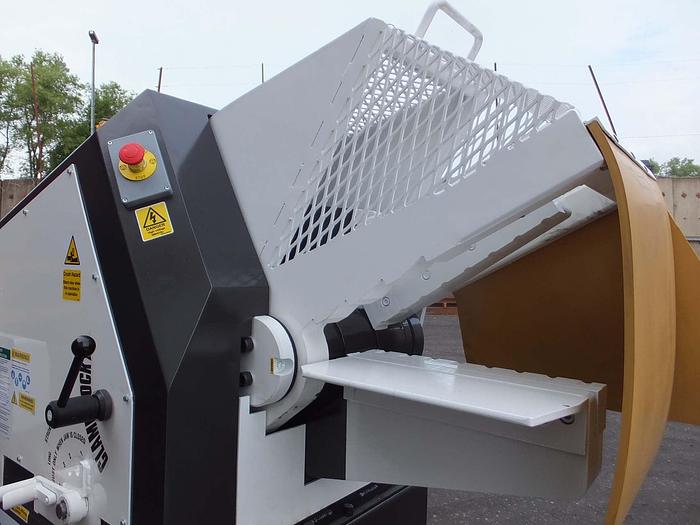

Although every JMC shear is designed with operator safety in mind, the Global safety shear range goes one step further. A strong metal case encloses moving parts and a rugged guard protects the operator from the blades. Guards have perplex viewing points to improve visibility and further enhance safety.

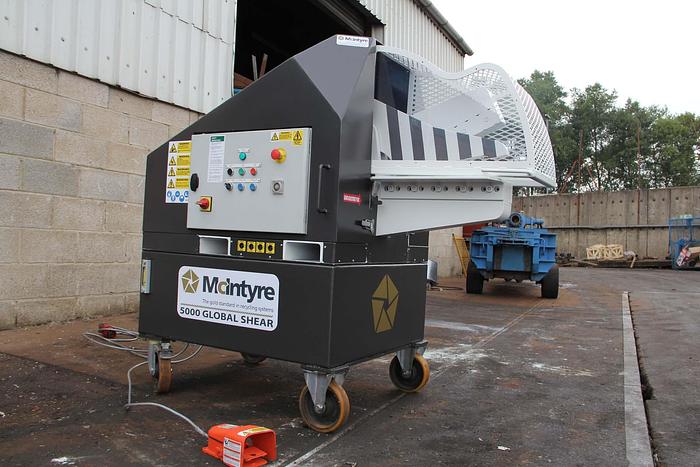

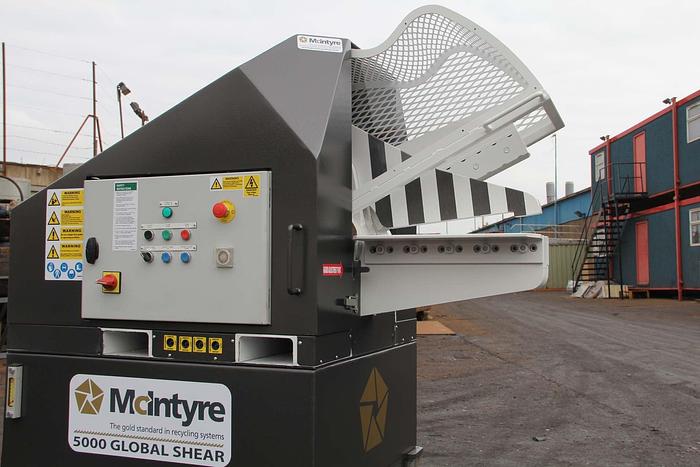

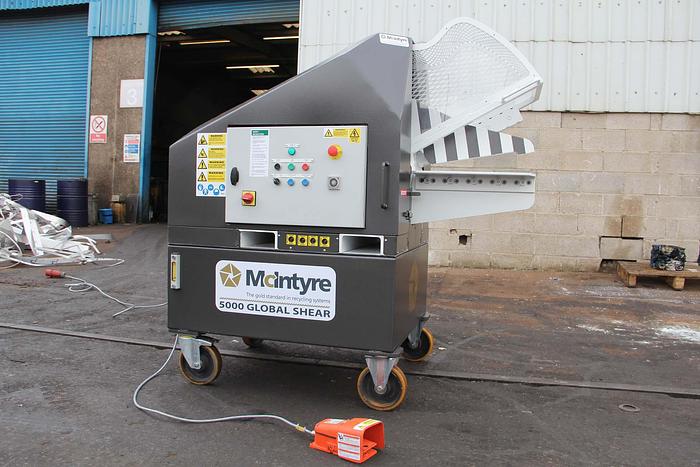

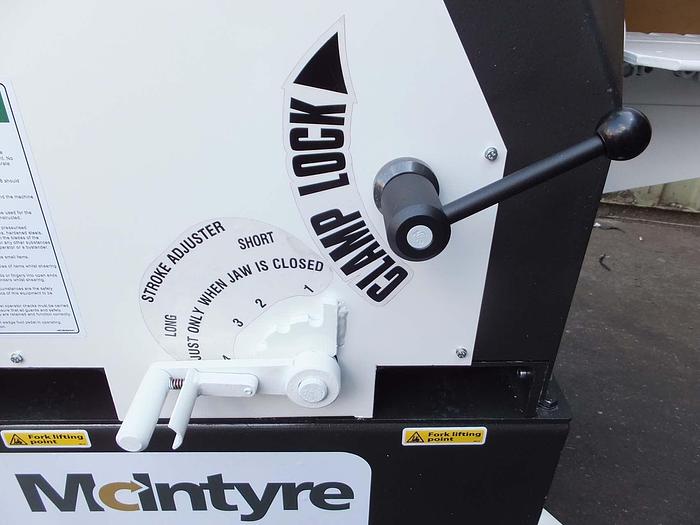

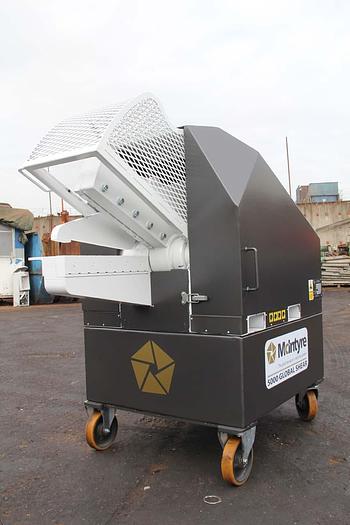

The Global 5000 and 6000 units are equipped with an automatic hold down clamp which holds material in place during cutting and prevents kick back. As an additional safety option, machines can be fitted with strong rubber curtains which shield the operator from flying material, particularly important if the metal being cut is quite brittle.

HIGH PERFORMANCE

Emphasis on safety does not compromise the performance of the Global shear range. Shear forces vary from 90 up to 120 tons giving cutting capacities of up to 63mm (2.5") mild steel.

Built from quality components and with their strong metal shell, Global shears are designed and built to last so your investment will be protected for many years to come.

TECHNICAL DATA

Machine Dimensions

1625 x 910 x 140mm

Blade Length 407 mm / 16"

Tip to Top Opening 225mm / 8.8"

Shearing Height 936mm / 36.8"

Weight with Oil 990kg

Oil Capacity 200 Liters / 44 Gallon

Noise level 75 +/- 3dBA

Cut Control Single Cut - Repeating

Standard Electrics 32A / 3ph /380-415v / 60Hz

Power Rating 7.5 kW / 10hp

Motor speed

1450 rpm

Max System Pressure 214 Bar / 3100 psi

Max Shear Force 90 tons

Cut speed Fully open 11 cuts/min (dry cycle)

Cut speed 40% open 28 cuts/min (dry cycle)

Max Cutting Capacity Round 2.1/4" (56mm)

Max Cutting Capacity Square 1.3/4" (45mm)

DIMENSIONS

1625 x 910 x 140mm

BLADE LENGTH

407 mm / 16"

TIP TO TIP OPENING

225mm / 8.8"

SHEARING HEIGHT

936mm / 36.8"

WEIGHT WITH OIL

990kg

OIL CAPACITY

200 Liters / 44 Gallon

NOISE LEVEL

75 +/- 3dBA

CUT CONTROL

Single Cut - Repeating

STANDARD ELECTRICS

32A / 3ph /380-415v / 60Hz

POWER RATING

7.5 kW / 10hp

MOTOR SPEED

1450 rpm

MAX SYSTEM PRESSURE

214 Bar / 3100 psi

MAX SHEAR FORCE

90 tons

CUT SPEED FULLY OPEN

11 cuts/min (dry cycle)

CUT SPEED 40 OPEN

28 cuts/min (dry cycle)

CUTTING CAPACITY MILD STEEL

2.1/4" (56mm) round bar, 1.3/4" (45mm) square bar
