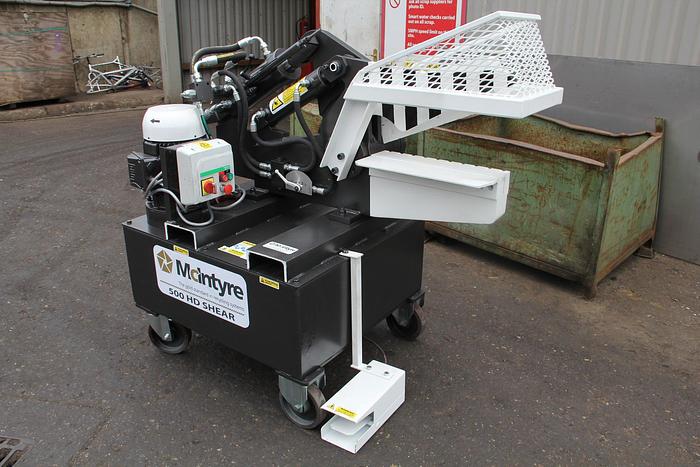

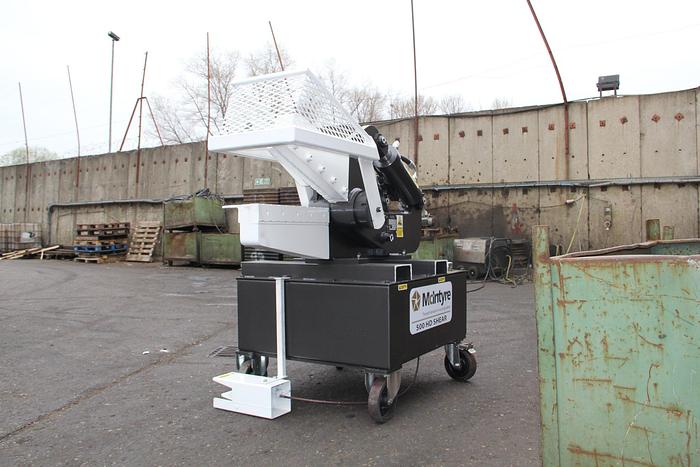

500HD - 20" MCINTYRE ALLIGATOR SHEAR WITH HYDRAULIC HOLD DOWN

The McIntyre 500HD Alligator Shear has a larger blade length than the 407 CAT Shear, the 500 has also been purpose-built for recovering valuable precious metals from catalytic converters. Both shears come complete with a filtration system to remove dust which may also contain precious metals and can also handle a wide range of other operations.

TECHNICAL DATA

Machine Dimensions

65.3" x 36" x 59"

Blade Length 508mm / 20"

Tip to Top Opening 225mm / 10.2"

Shearing Height 934mm / 38.5"

Weight with Oil 2508lbs

Oil Capacity 62 Gallons

Noise level 78 +/- 3dBA

Cut Control Single Cut - Repeating

Electrics

3ph 220v or 480v 60Hz

Power Rating 10hp

Motor speed

1750 rpm

Max System Pressure 241 Bar / 3500 psi

Max Shear Force 120 tons

Cut speed Fully open 15 cuts/min (dry cycle)

Cut speed 40% open 45 cuts/min (dry cycle)

Max Cutting Capacity Round 2.1/2" (63mm)

Max Cutting Capacity Square 2" (50mm)

DIMENSIONS

1690 x 712 x 1400mm

BLADE LENGTH

508mm / 20"

TIP TO TIP OPENING

225mm / 8.8"

SHEARING HEIGHT

934mm / 36.75"

WEIGHT WITH OIL

990kg

OIL CAPACITY

200 Liters / 44 Gallon

NOISE LEVEL

78 +/- 3dBA

CUT CONTROL

Single Cut - Repeating

STANDARD ELECTRICS

32A / 3ph /380-415v / 60Hz

POWER RATING

7.5 kW / 10hp

MOTOR SPEED

1450 rpm

MAX SYSTEM PRESSURE

241 Bar / 3500 psi

MAX SHEAR FORCE

120 tons

CUT SPEED FULLY OPEN

8 cuts/min (dry cycle)

CUT SPEED 40 OPEN

21 cuts/min (dry cycle)

CUTTING CAPACITY MILD STEEL

2.1/4" (56mm) round bar, 1.3/4" (45mm) square bar
