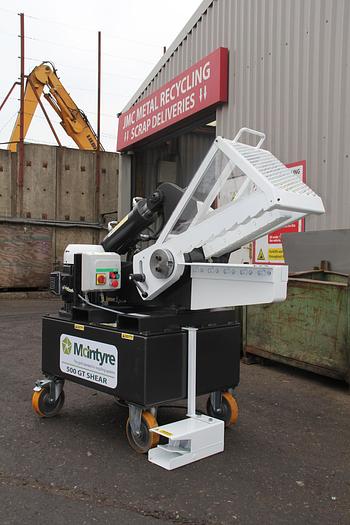

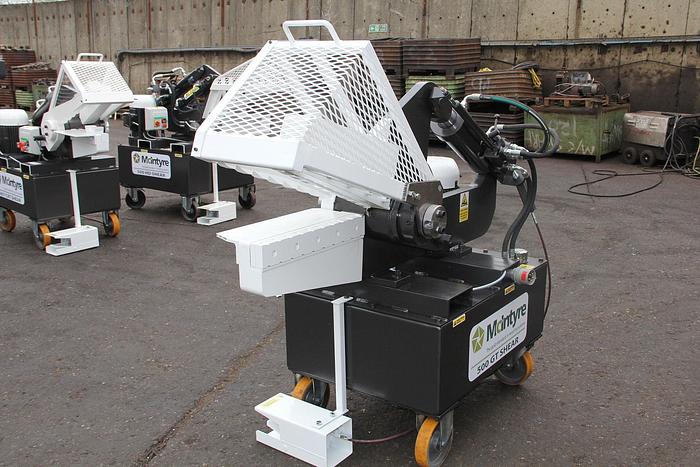

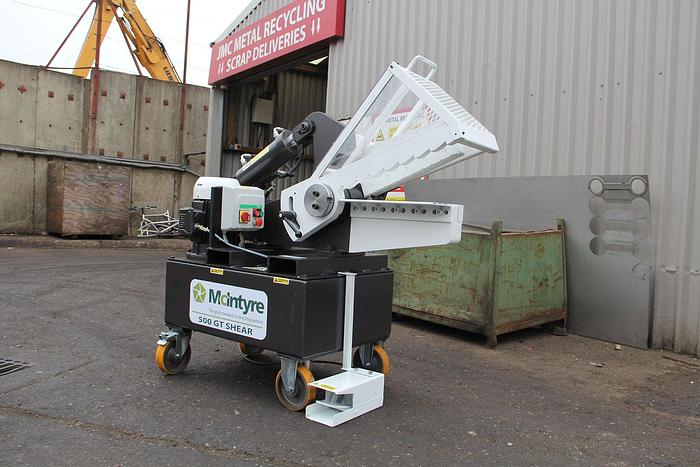

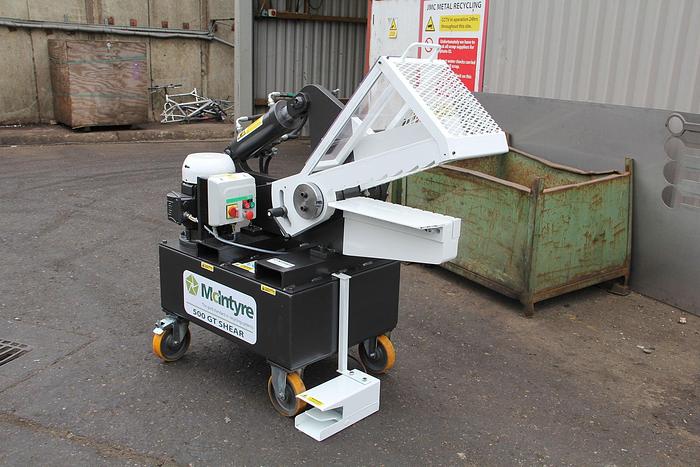

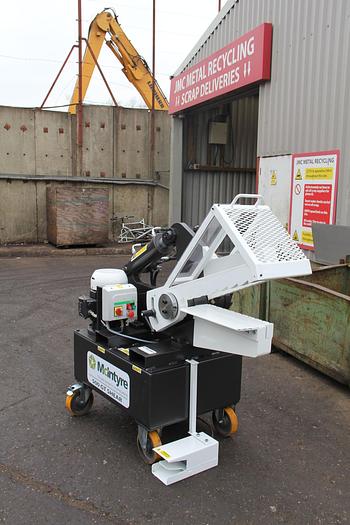

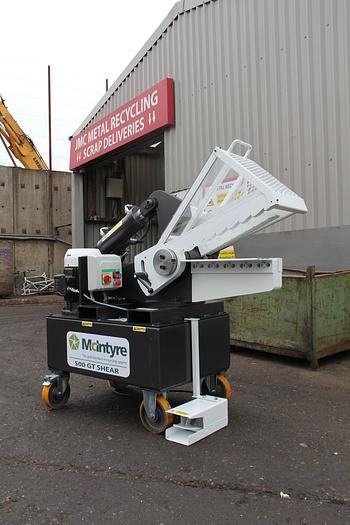

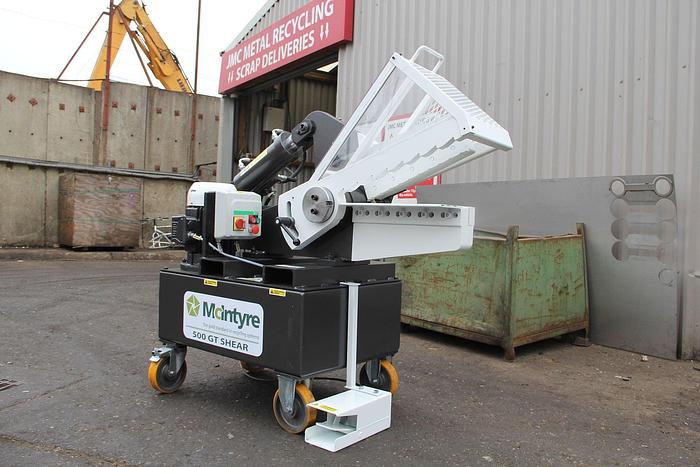

500GT - 20" MCINTYRE ALLIGATOR SHEAR

The McIntyre 500 Alligator Shear has a 20"blade length giving better versatility than the smaller 407 model. The 500GT is powerful enough to handle most nonferrous cleaning and sizing operations with ease, its 120 ton cutting force is enough to cut a 2.1/4" round steel bar.

TECHNICAL DATA

Machine Dimensions

66.5" x 28" x 55"

Blade Length 508mm / 20"

Tip to Top Opening 225mm / 8.9"

Shearing Height 934mm / 36.75"

Weight with Oil 2178lbs

Oil Capacity 44 Gallon

Noise level 78 +/- 3dBA

Cut Control Single Cut - Repeating

Standard Electrics 3ph /220v or 480V / 60Hz

Power Rating 10hp

Motor speed

1740 rpm

Max System Pressure 241 Bar / 3500 psi

Max Shear Force 120 tons

Cut speed Fully open 8 cuts/min (dry cycle)

Cut speed 40% open 21 cuts/min (dry cycle)

Max Cutting Capacity Round 2.1/4" (56mm)

Max Cutting Capacity Square 1.3/4" (45mm)

DIMENSIONS

1690 x 712 x 1400mm

BLADE LENGTH

508mm / 20"

TIP TO TIP OPENING

225mm / 8.8"

SHEARING HEIGHT

934mm / 36.75"

WEIGHT WITH OIL

990kg

OIL CAPACITY

200 Liters / 44 Gallon

NOISE LEVEL

78 +/- 3dBA

CUT CONTROL

Single Cut - Repeating

STANDARD ELECTRICS

32A / 3ph /380-415v / 60Hz

POWER RATING

7.5 kW / 10hp

MOTOR SPEED

1450 rpm

MAX SYSTEM PRESSURE

241 Bar / 3500 psi

MAX SHEAR FORCE

120 tons

CUT SPEED FULLY OPEN

8 cuts/min (dry cycle)

CUT SPEED 40 OPEN

21 cuts/min (dry cycle)

CUTTING CAPACITY MILD STEEL

2.1/4" (56mm) round bar, 1.3/4" (45mm) square bar
