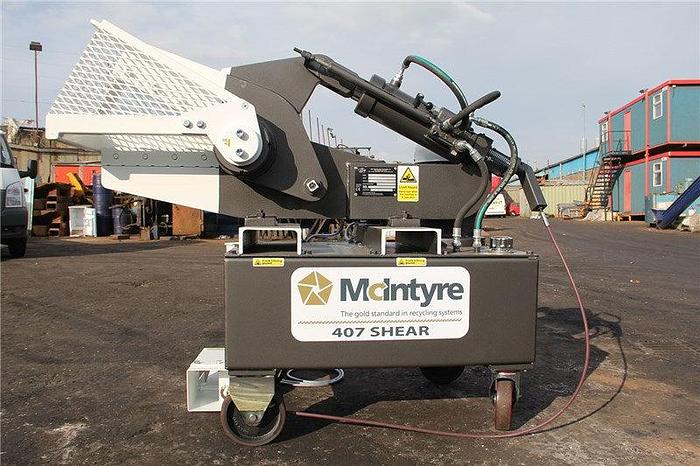

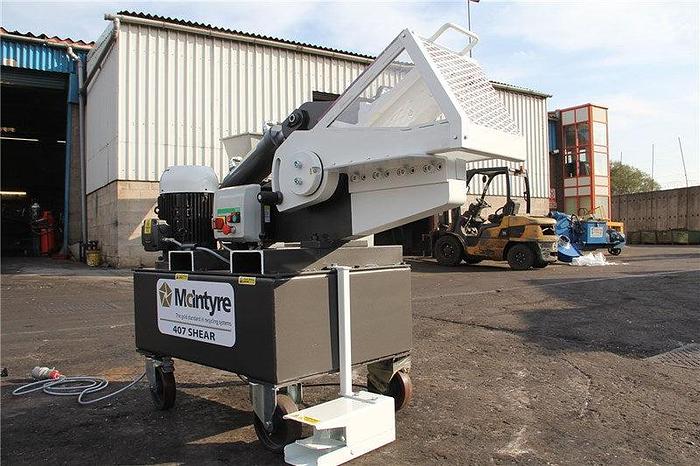

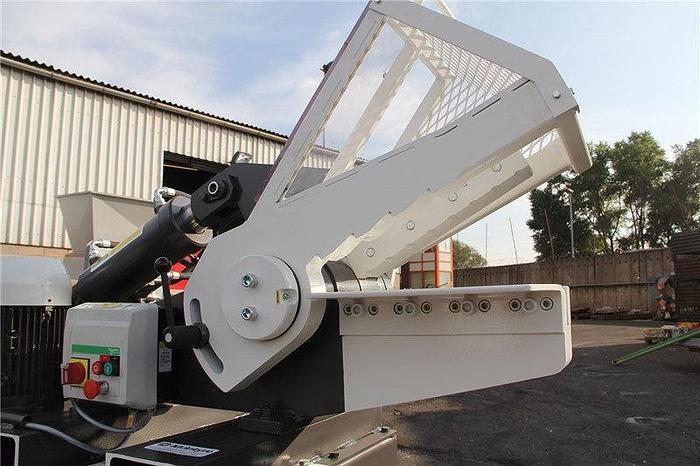

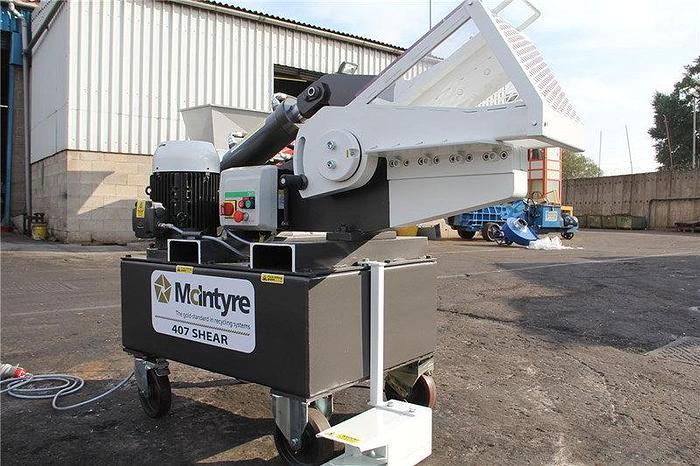

407 - 16" MCINTYRE ALLIGATOR SHEAR

The McIntyre 407 alligator shear is a robust and powerful shear designed to be durable enough for the most difficult working environments, it is used extensively throughout the world for cropping both ferrous and none ferrous metals. The 407 can be moved on its own wheels or it has fork lifting slots in the body making it a truly versatile shear.

TECHNICAL DATA

Machine dimensions: 62.5''x 28''x 53''

Blade length: 16''

Tip to tip opening: 8.8''

Shearing height: 36.8'

Weight with oil: 1980 lbs

Oil capacity: 44 Gallons

Noise level: 75 dBA +/-3

Cut control: Single cut repeating

Standard electrics: 3ph 480v

Power rating: 10hp

Motor speed: 1750rpm

Max system pressure: 3100psi

Max shear force: 90 Tons

Cut speed - fully open: 11 Dry cuts per minute

Cut speed - 40% open: 28 Dry cuts per minute

Cutting capacity: mild steel 2.25'' round bar 1.75'' Square bar

While we make every effort to ensure that our information is correct, technical data is for guidance only and subject to change. If any dimension or performance indication is particularly important to you, please check it with us before ordering.

DIMENSIONS

62.5''x 28''x 53''

BLADE LENGTH

16''

TIP TO TIP OPENING

8.8''

SHEARING HEIGHT

36.8'

WEIGHT WITH OIL

1980 lbs

OIL CAPACITY

44 Gallons

NOISE LEVEL

75 dBA +/-3

CUT CONTROL

Single cut repeating

STANDARD ELECTRICS

3ph 480v

POWER RATING

10hp

MOTOR SPEED

1750rpm

MAX SYSTEM PRESSURE

3100psi

MAX SHEAR FORCE

90 Tons

CUT SPEED FULLY OPEN

11 Dry cuts per minute

CUT SPEED 40 OPEN

28 Dry cuts per minute

CUTTING CAPACITY MILD STEEL

2.25'' round bar, 1.75'' Square bar
