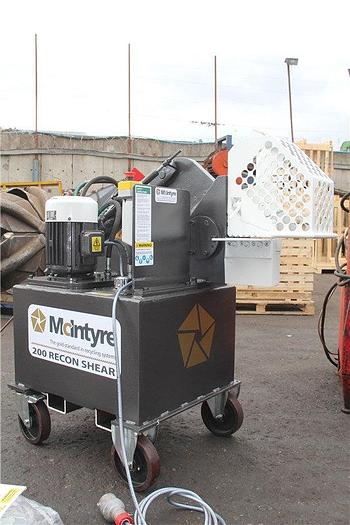

200B - 8'' MCINTYRE ALLIGATOR SHEAR

The McIntyre 200B Alligator Shear is equipped with an 8" blade, the high shear force and wide tip to tip opening means that the McIntyre 200 alligator shear can deal efficiently with a whole range of non-ferrous cleaning and sizing operations - in particular, larger diameter electric cables and valves. In most cases, if your metal fits in to the jaw of the 200 then it will cut it.

Long lasting Blades

The blades can cut on all four edges, allowing the blades to be removed, turned and refitted to expose each edge in turn before the blades need replacing.

Easy to use

A simple foot pedal operation closes the jaws, when released the jaws return to the open position, increasing operator safety. A manual hold down clamp is fitted to prevent kick back of the material and maintain a safe distance between the operator and the cutting blades.

Total flexibility

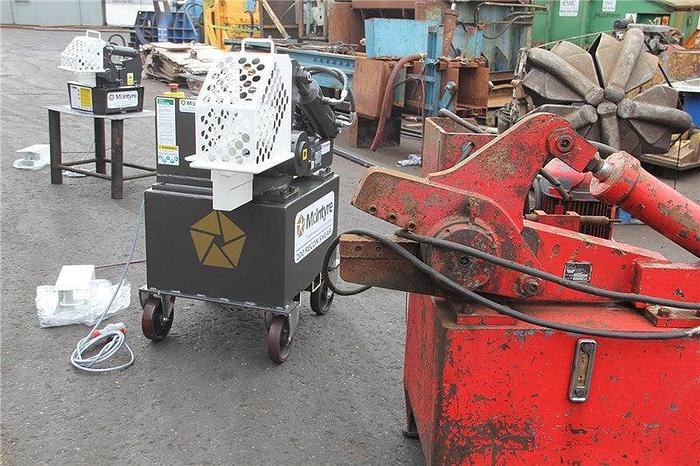

There are a wide range of 200B models to choose from, Either bench mounted or on a wheeled stand, single phase or three phase power, the choice is yours.

Whilst we make every effort to ensure that our information is correct, technical data is for guidance only and subject to change. If any dimension or performance indication is particularly important to you, please check it with us before ordering.

DIMENSIONS

55''x 27''x 56''

BLADE LENGTH

8''

TIP TO TIP OPENING

6''

SHEARING HEIGHT

36.7''

WEIGHT WITH OIL

925 lbs

OIL CAPACITY

13.5 Gallons

NOISE LEVEL

75 dBA +/-3

CUT CONTROL

Single cut repeating

STANDARD ELECTRICS

3ph 480v

POWER RATING

5.4hp

MOTOR SPEED

1750rpm

MAX SYSTEM PRESSURE

3200psi

MAX SHEAR FORCE

52 Tons

CUT SPEED FULLY OPEN

8 Dry cuts per minute

CUT SPEED 40 OPEN

21 Dry cuts per minute

CUTTING CAPACITY MILD STEEL

1.5'' round bar, 1.25'' Square bar
