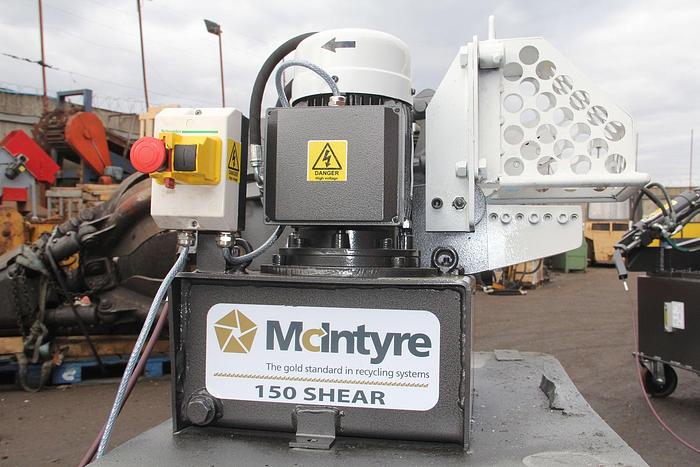

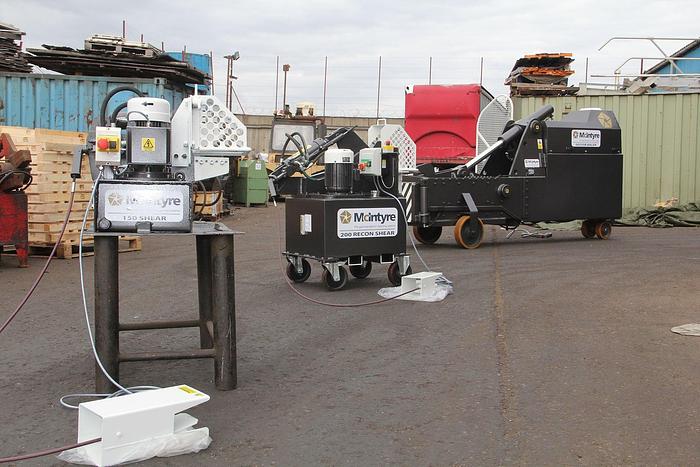

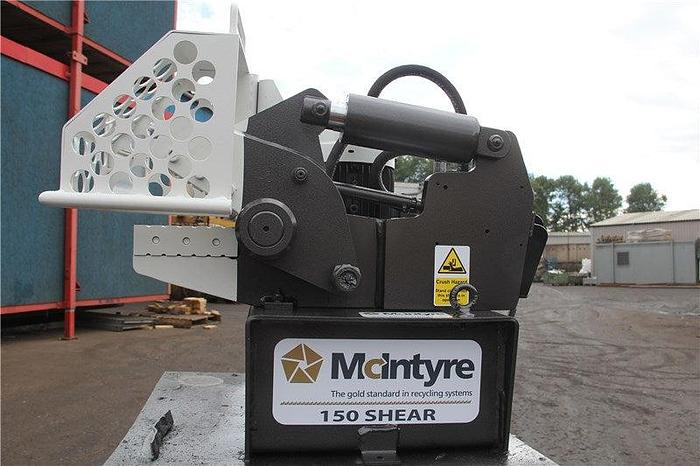

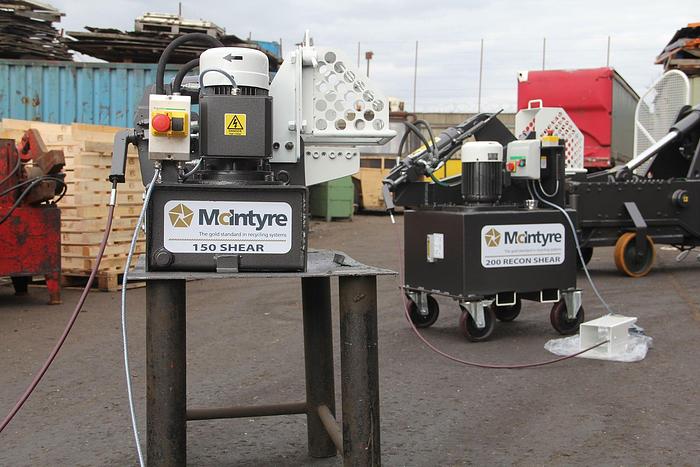

150 - 6" MCINTYRE ALLIGATOR SHEAR SINGLE PHASE

The McIntyre 150 Alligator Shear is ideal for all lighter metal shearing, but is powerful enough to tackle gun metal valves, faucets, cable and other non-ferrous cleaning operations. The JMC 150 Shear is small enough to be moved easily around the yard.

EASY TO OPERATE

Opening and closing of the jaws is controlled from a movable foot pedal. The cutting blades return immediately to the open position once pressure on the foot pedal is released - thereby increasing operator safety.

Single cuts, nibbling and cracking are all easy with the fine control available.

Both hands remain free to manipulate the material being cut, and a simple stroke adjustment system facilitates material cropping.

The JMC 150 Alligator Shear comes complete with an operation manual, cable and plug. It also carries a 12 month parts warranty.

Designed as a low-cost answer to metal cleaning. An ordinary socket and suitable bench are all you need to put the 150 shear through its paces. While we make every effort to ensure that our information is correct, technical data is for guidance only and subject to change. If any dimension or performance indication is particularly important to you, please check it with us before ordering.

Whilst we make every effort to ensure that our information is correct, technical data is for guidance only and subject to change. If any dimension or performance indication is particularly important to you, please check it with us before ordering.

DIMENSIONS

29.5" x 26" x 25"

BLADE LENGTH

6"

TIP TO TIP OPENING

4.5"

SHEARING HEIGHT

12.8"

WEIGHT WITH OIL

330 lbs

OIL CAPACITY

5 Gallons

NOISE LEVEL

74 dBA +/-3

CUT CONTROL

Single cut

STANDARD ELECTRICS

1ph 220v

POWER RATING

2hp

MOTOR SPEED

1750rpm

MAX SYSTEM PRESSURE

2500psi

MAX SHEAR FORCE

25 Tons

CUT SPEED FULLY OPEN

8 Dry cuts per minute

CUT SPEED 40 OPEN

20 Dry cuts per minute

CUTTING CAPACITY MILD STEEL

1'' Round bar 3/4'' Square bar
